How sand works inside the filter

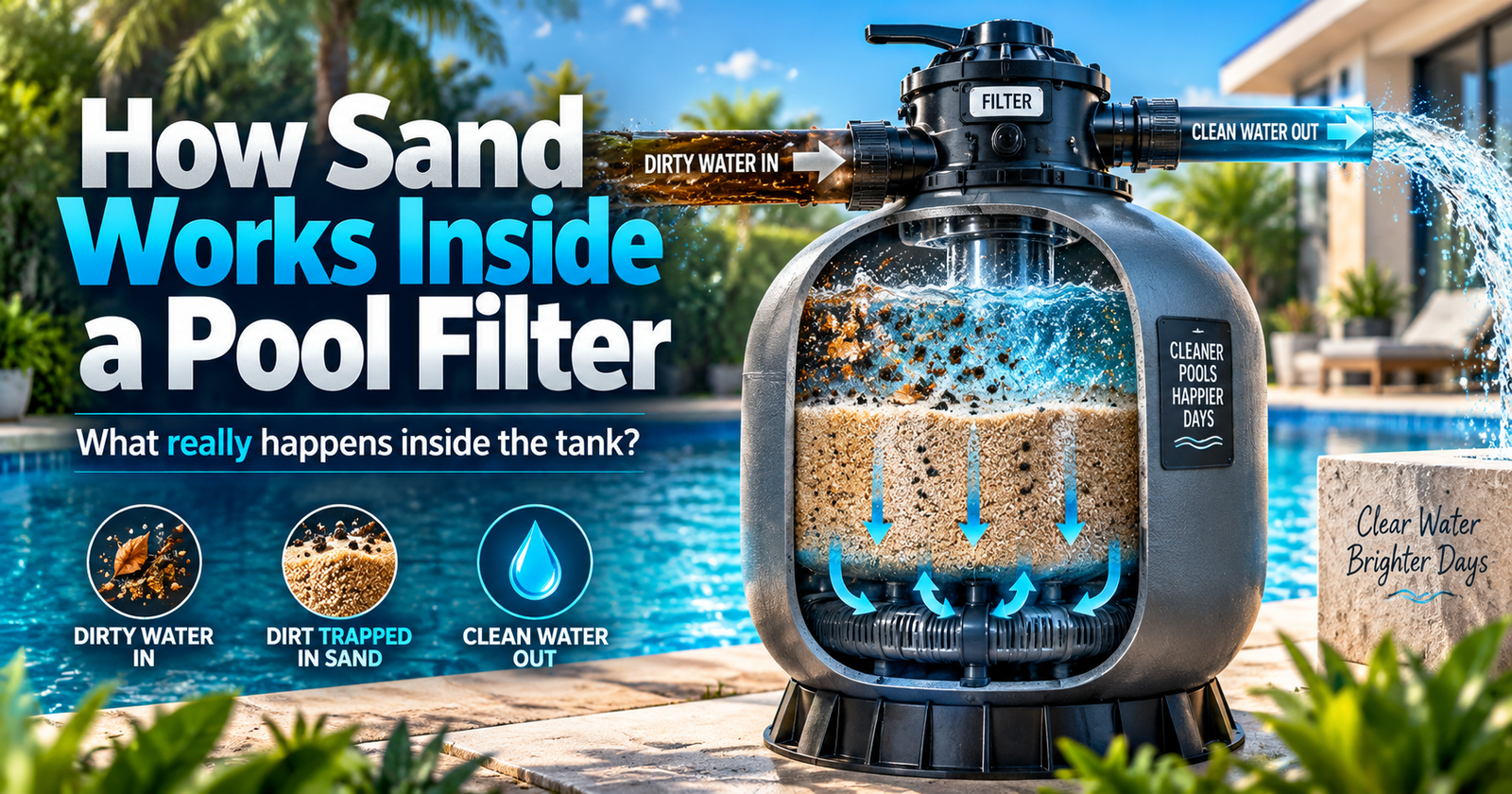

Cross-section diagram of a pool sand filter showing dirty water entering the top, dirt particles getting trapped in the silica sand bed, and clean water flowing out the bottom.

Crystal clear water is not the product of chance, but of a rigorous mechanical process that takes place in the darkness of a pressurized tank. When water flows through the system, it encounters a bed of granular material that appears simple but conceals a fascinating dynamic at the microscopic level.

The secret of sharp edges

The sand used in these systems is not the same as the one found on a beach. It is grade 20 silica sand, specifically extracted and processed because its grains have jagged and asymmetrical edges. As water is pushed downward, these microscopic ridges act as millions of tiny hooks that trap particles invisible to the human eye. Over the years, the constant friction of the water ends up polishing these edges. When the sand becomes round and smooth, it completely loses its holding capacity.

The trap of channeling

Water always seeks the path of least resistance. If the granular bed is not maintained level or if there is an excessive accumulation of debris, the water pressure carves direct tunnels through the material. This technical phenomenon is known as channeling. Water flows through these micro-canyons without being filtered at all. From the outside, the equipment seems to operate normally, but on the inside, the purification process has been entirely neutralized.

The hidden impact of cosmetics

A little-known fact is the destructive effect of sunscreens, lotions, and body oils. These substances do not dissolve. Upon reaching the tank, they act as an adhesive that binds the silica grains with organic remains, forming hardened masses known as mudballs. These formations can reach the size of a rock and settle at the bottom of the tank, reducing the usable purification area and forcing the motor to work under extreme strain.

The effect of reverse pressure

To release everything that has been trapped, the water flow must be violently reversed. This shift literally lifts the entire sand bed, causing it to boil and expand inside the tank. As the grains collide with each other, they rub and release the dirt, which is then expelled into the drain. If this expansion does not happen with adequate force or duration, the lower layers become permanently petrified, turning the sand into solid blocks of concrete.

The definitive technical recommendation

To prevent petrification and the formation of mudballs, simple expansion through reverse pressure is not always enough. Direct intervention on the chemistry of the silica bed is a necessary practice to dissolve the binding agents. This is achieved by introducing specific industrial enzymes or degreasers to eliminate biofilms and cosmetic oils, allowing them to act inside the tank while it is at rest.

Additionally, a tactile analysis of the material is essential. When examining the top layer, the sand must feel loose and fluid at all times. If the texture feels clumpy, or if wear has irreversibly polished the microscopic edges, the retention dynamic has ceased to function, and the only way to restore the purity of the water is the complete extraction and replacement of the granular bed.
